Comparing BPP vs RPD in MPD Simulator

Comparing BPP vs RPD in Drill Pipe Connections

MPD Simulator for iPhone and iPad


BPP is a auxiliary component of the MPD System to provide flow to maintain Back Pressure during low-flow events or pumps-off events, such as in drill pipe connections.

When the rig mud pump is being ramped down slowly for connection purposes, the back pressure pump is turned on and ramped up when the rig mud pump drops below a set point. Flow by choke varies causing greater pressure variations, requiring more attention from the operators.

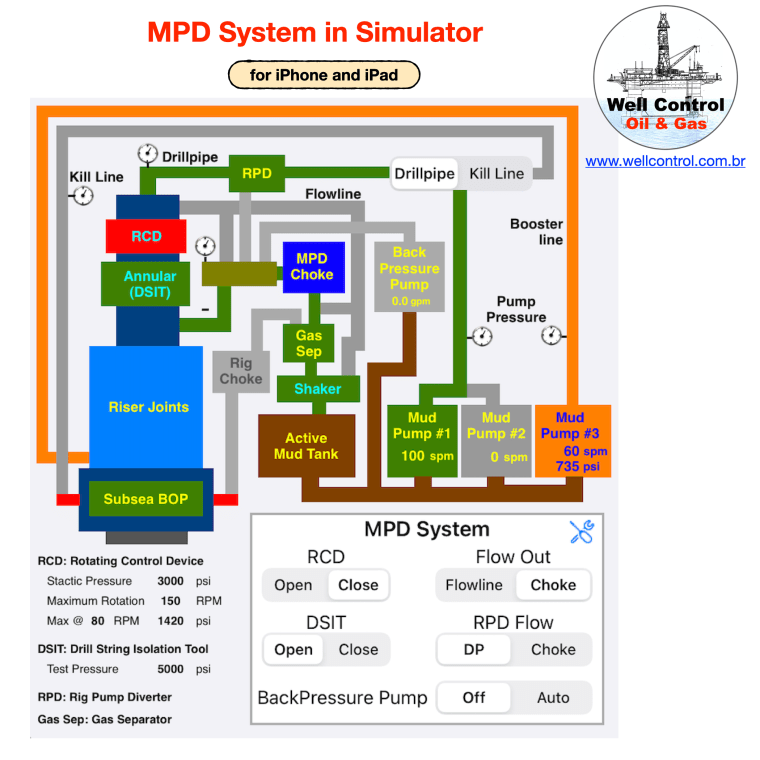

RPD is a necessary component of the MPD System to maintain Back Pressure during drill pipe connections using the flow provided by the mud pumps of the rig. The flow by choke does not vary. Pressure variations are smaller.

For Oil & Gas apps for iPhone, iPad and Mac, please visit our websites at:


Did you like our content?

– Like it ❤️

– Follow Us!

– Share your experience with your friends!

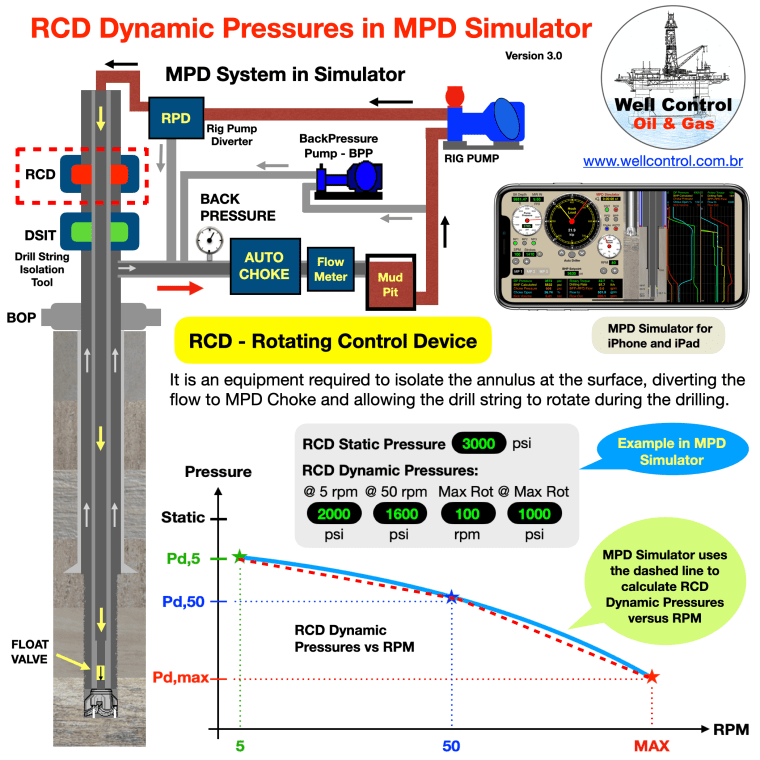

MPD – RCD Dynamic Pressures

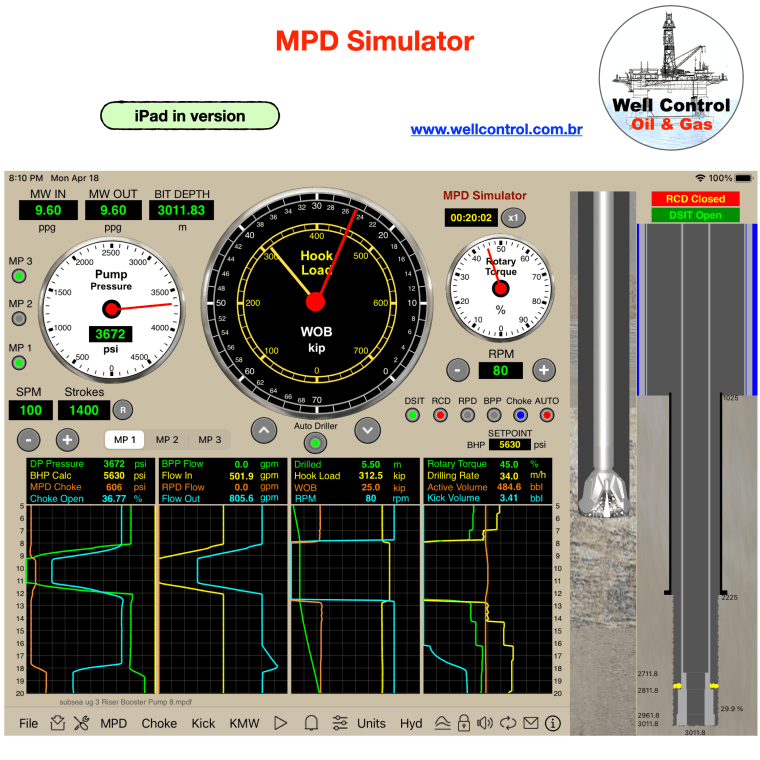

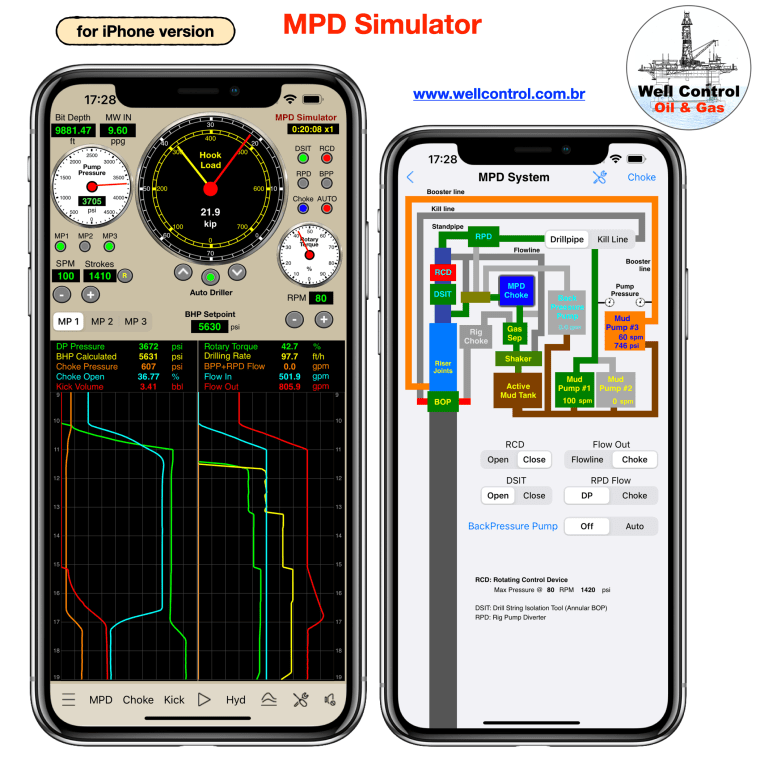

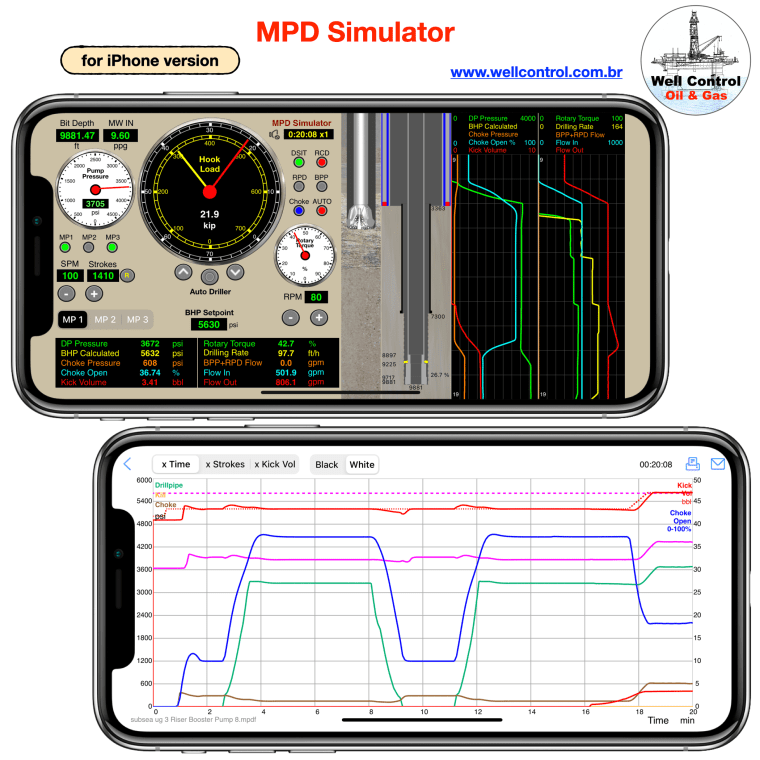

MPD Simulator

for iPhone and iPad

New version 3.0

added Dark Mode (iOS 13 or higher) and a lot of technical improvements.

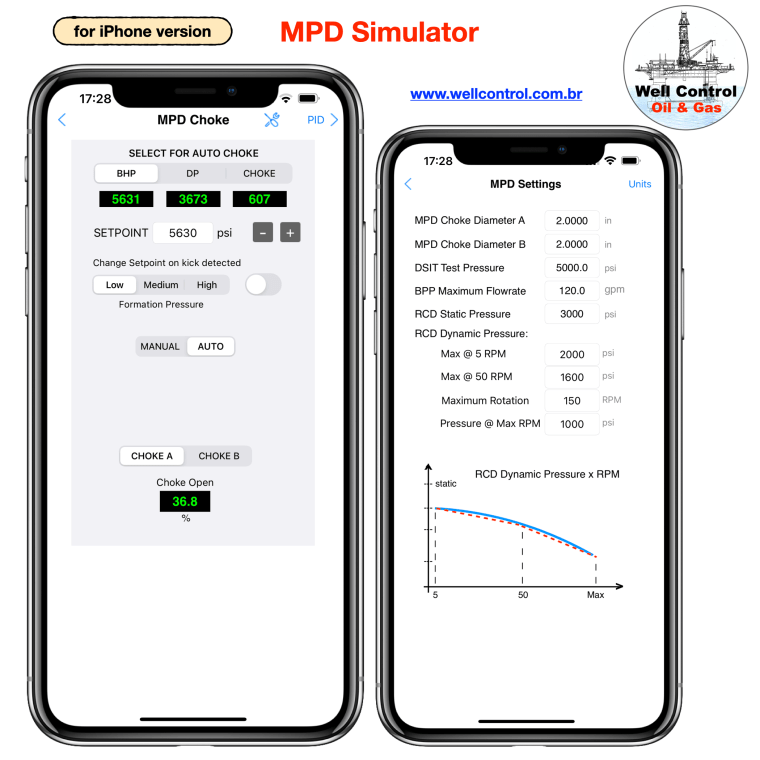

– added RCD dynamic pressure settings
– added confirmation alert to operate MPD Equipments
– added 3D drill with real-time rotation
– additional ability to keep your finger on the buttons to operate them continuously (SPM, RPM and WOB)
– Added confirmation alert to reset failures
– added light alert on operation panel for RCD and DSIT failures
– added maximum RCD dynamic pressure calculation for current RPM
– added formation equivalent gradient in kick formation settings
– added overbalance/underbalance in kick formation settings
– and other improvements
