Methods and Formulas used in Well Control Methods for iPhone and iPod Touch

Well Control Methods for iPhone and iPod Touch – WCMethods

WCM1_30_icon



Download on the App Store

Description

This application uses the basic calculations of the methods to control oil wells after the occurrence of kick during drilling operations on floating platforms and land rigs.

This app is completely interactive and allows users to define a wide variety of parameters for oil wells and unit system, save data and more.

It is can be applied in the oilfield and also help on understanding the methods of the well control.
Well Control Methods:

For Simulation, use the another app “Well Control Simulation”.

For new features, report bugs, improvements and suggestions please contact us: contact@wellcontrol.com.br

Well Control Methods:

1. Driller’s Method
2. Wait and Weight
3. Dynamic Volumetric
4. Static Volumetric – Migration / Bleed
5. Static Volumetric – Lubricate / Bleed (Top Kill)

Others:

6) calculations of Riser Safety Margin;
7) Included the formulas;
8) Ability to work with multiple files;
9) Sections: Riser, Casing, Liner and Open Hole;
10) Pop-up view to alert user about invalid values;
11) Send resume of methods by email.
12) Show graph theoretical of the methods.
13) Set drillstring with drillpipe1, drillpipe2, heavy weight, drillcollar1 and drillcollar2;
14) Select floating rig or land rig;
15) Select unit systems: Metric, SI, field1 (imperial) and field2 (mix);
16) set fluid parameters: mud weight, plastic viscosity, yield point and initial gel;
17) Select rheological models: Power or Bingham;
18) Set gradients: formations and temperature;
19) Set jet nozzles or fixed TFA;
20) Vertical or Slant Well Type (KOP, TVD and Measured Depth);
21) Set surface circulation equipments (mud pump and lines);
22) Save configuration to data files;
23) Show schematic of well with drillstring;
23) Useful for filling of Standardized Kill Sheets for Well Control;
24) Useful for Filling of Previous Recorded Sheets;
25) Capacities and Volumes calculations;
26) Hydrostatic and critical pressures calculations;
27) Hydraulics calculations;

The Driller’s Method

During drilling operation of oil wells, there may be inflow of formation fluids into the well, which is an undesirable condition. The driller should detect such events and closing the well immediately. Record information after the closing of the well corresponding to stabilization of pressure, volume gain, SIDPP (Shut-in Drillpipe Pressure) and SICP (Shut-in Casing Pressure. In the case of operations on floating units (subsea stack), this term could be redefined as Shut-in Choke Pressure).
The control method to be applied is the driller’s method. That is to circulate the influx even with the original weight of the mud, keeping constant the circulation pressure named ICP – Initial Pressure Circulation. The second circulation should be made with the kill mud weight in two steps:
1. Fill the drill string until the bit by keeping the pressure at the Choke (at the KILL, on subsea stack) constant and equal to SIDPP.
2. Complete circulation of the annular to the surface keeping the pressure of circulation with the kill mud constant named FCP – Final Circulation Pressure. On subsea stack, after the choke fully open, the pump pressure increases until FCP 2.

Attention: about drill bit off bottom

This method should only be applied with the drill bit in the bottom hole or when the kick is completely in annular of the drill string. To minimize errors of calculation of the kill mud weight, the calculations made in this application considers the depth of the drill bit instead of the depth of the well to calculate the kill mud weight.
The formation pressure consider the depth of well. In case of top of the kick bellow the bit, it is recommended to apply the volumetric method until kick go through the drill bit to the annular, following then the driller’s method.

Formulas:

ICP = Pks + SIDPP

  ICP -  Inital Circulation Pressure, psi
  Pks - Recorded pump pressure at the kill rate speed, psi
  SIDPP - Shut-in Drillpipe Pressure, psi

  Notes about floating units:
     a) Pks must be recorded by circulating riser;
     b) Record the friction loss in the choke line at the kill rate speed, psi;

KM = OM + SIDPP / (0.0519 x TVD)

 KM - Kill Mud Weight, ppg
 OM - Original Mud Weight, ppg
 TVD - True Vertical Depth, ft

FCP = Pks x KM / OM

   FCP - Final Circulation Pressure, psi

FCP 2 = (Pks + ΔPcl) x KM / OM

   FCP 2 - Final Circulation Pressure with Kill Mud at Choke, psi
   ΔPcl - Choke Line Friction, psi

Summary of method

STEPS PUMP PRESSURE KILL PRESSURE CHOKE PRESSURE VOLUME TO PUMP
Bring the pump to kill speed SICP SICP – Choke line loss
Circulate out the influx to surface ICP Bit to Surface
Circulate to fill drill string with kill mud SIDPP SIDPP – Choke line loss Surface to Bit
Circulate to fill annulus with kill mud FCP Bit to Surface

Formulas used in calculations of this method:

  WCMethods_Formulas1

Screenshot from WCMethods:

WCM1_DM_01

WCM1_DM_02

Example in Well Control Simulator:

Screenshot from Well Control Simulator for iPhone and iPod Touch:

WELLS WITH SURFACE STACK

DRILLER’S METHOD

surfacedmxstk2



WAIT AND WEIGHT METHOD (ENGINEER’S METHOD)

surfacewwxstk2

WELLS WITH SUBSEA STACK

DRILLER’S METHOD

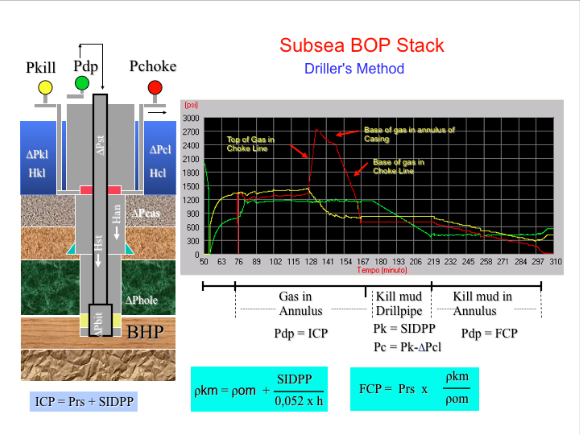

subseadmxstk2

WAIT AND WEIGHT METHOD (ENGINEER’S METHOD)

subseawwxstk2



Importing Data from other Apps:


Well Control
Simulator
iPhone | iPad

Drilling
Simulator
iPhone | iPad

Leak-Off Test
Simulator
iPhone | iPad

Kick Tolerance
iPhone | iPad
Mac OS X

Drilling Hydraulics
iPhone | iPad
Mac OS X




Well Control Methods HD (for iPad):

WCM2_DM_04
WCM2_DM_01
WCM2_DM_02
WCM2_DM_03

Well Control Methods for Mac:

WCM3_DM_01
WCM3_DM_02
WCM3_DM_03
WCM3_DM_04
